When doing autot-tunning the inference from tensorflow, the error occurred on x86

dolphintear · May 21, 2019, 11:12am

%43 = reshape(%42, newshape=[4, 34, 34, 16])
%44 = transpose(%43, axes=[0, 3, 1, 2])
free_var %MMNet/enc_block0/branch1/depthwise_conv_dilation/depthwise_weights: Tensor[(3, 3, 16, 1), float32]
%45 = transpose(%MMNet/enc_block0/branch1/depthwise_conv_dilation/depthwise_weights, axes=[2, 3, 0, 1])
%46 = nn.conv2d(%44, %45, groups=64, channels=64, kernel_size=[3, 3])an internal invariant was violated while typechecking your program [14:08:40] /home/dolphin/tvm/src/relay/pass/type_solver.cc:119: Check failed: resolved.defined(): Unable to unify parent types: TensorType([64, 0, 3, 3], float32) and TensorType([16, 1, 3, 3], float32)

it might be located in the below:
for i, rate in enumerate(rates):
with tf.variable_scope(f"branch{i}"):
conv = slim.conv2d(inputs, num_outputs=expanded_depth, kernel_size=1, stride=1, scope=“pointwise_conv”)
if stride > 1:
conv = separable_conv(conv, num_outputs=None, kernel_size=3, stride=stride, depth_multiplier=1, scope=“depthwise_conv_stride”)
conv = separable_conv(conv, num_outputs=None, kernel_size=3, stride=1, depth_multiplier=1, rate=rate, scope=“depthwise_conv_dilation”)
convs.append(conv)

What’s the reason the error happened? does tvm can auto-tune the dilated convs from tensorflow on x86? thanks in advance!

eqy · May 21, 2019, 9:59pm

Are you running a custom model? This may be a frontend bug during model import.

dolphintear · May 22, 2019, 1:34am

thanks!
yes, it’s a custom model from the github: https://github.com/hyperconnect/MMNet. But it contains standard conv2d, depthwise_conv2d, depthwise conv2d with different dilation rate and tf.image.resize_bilinear. there are no other special ops. the tensorflow decompose the depthwise dilated conv2d into three steps: 1. SpaceToBatchND 2.DepthWiseConv2d 3. BatchToSpaceND where the error happened as you can see the attched pics below.

by the way doing the .pd load, I copied the code from the tutorial but deleted the last two lines:
with tf.gfile.FastGFile(model_path, ‘rb’) as f:

graph_def = tf.GraphDef()
```
graph_def.ParseFromString(f.read())
```

graph = tf.import_graph_def(graph_def, name='')

# Call the utility to import the graph definition into default graph.

graph_def = tf_testing.ProcessGraphDefParam(graph_def)

```
# Add shapes to the graph.
```

#with tf.Session() as sess:
 #graph_def = tf_testing.AddShapesToGraphDef(sess, 'softmax')

thanks in advance!

dolphintear · May 23, 2019, 2:19pm

during doing the depthwise convolution with dilation rate =2 and filter = [3,3,16,1] , the output dims of SpaceToBatchND are [4, 16,34,34] with the batch_size=4, channels=16 , when doing the group convolution(can be seen as depthwise convolution), nn.conv2d(%44, %45, groups=64, channels=64, kernel_size=[3, 3]), should be like nn.conv2d(%44, %45, groups=16, channels=16, kernel_size=[3, 3])**???

dolphintear · May 22, 2019, 3:50pm

it seems tvm does not have the depthwise convolution with different dilation rates op on X86 for auto-tuning. what about on Nvidia GPU?

eqy · May 23, 2019, 9:30pm

What do you mean by “different” dilation rates? Dilation is handled here in the CUDA depth wise schedule: https://github.com/dmlc/tvm/blob/28e8eca18dc2b2d6e23583c8293764cf6dcfdf32/topi/python/topi/cuda/depthwise_conv2d.py#L76

dolphintear · May 24, 2019, 6:04am

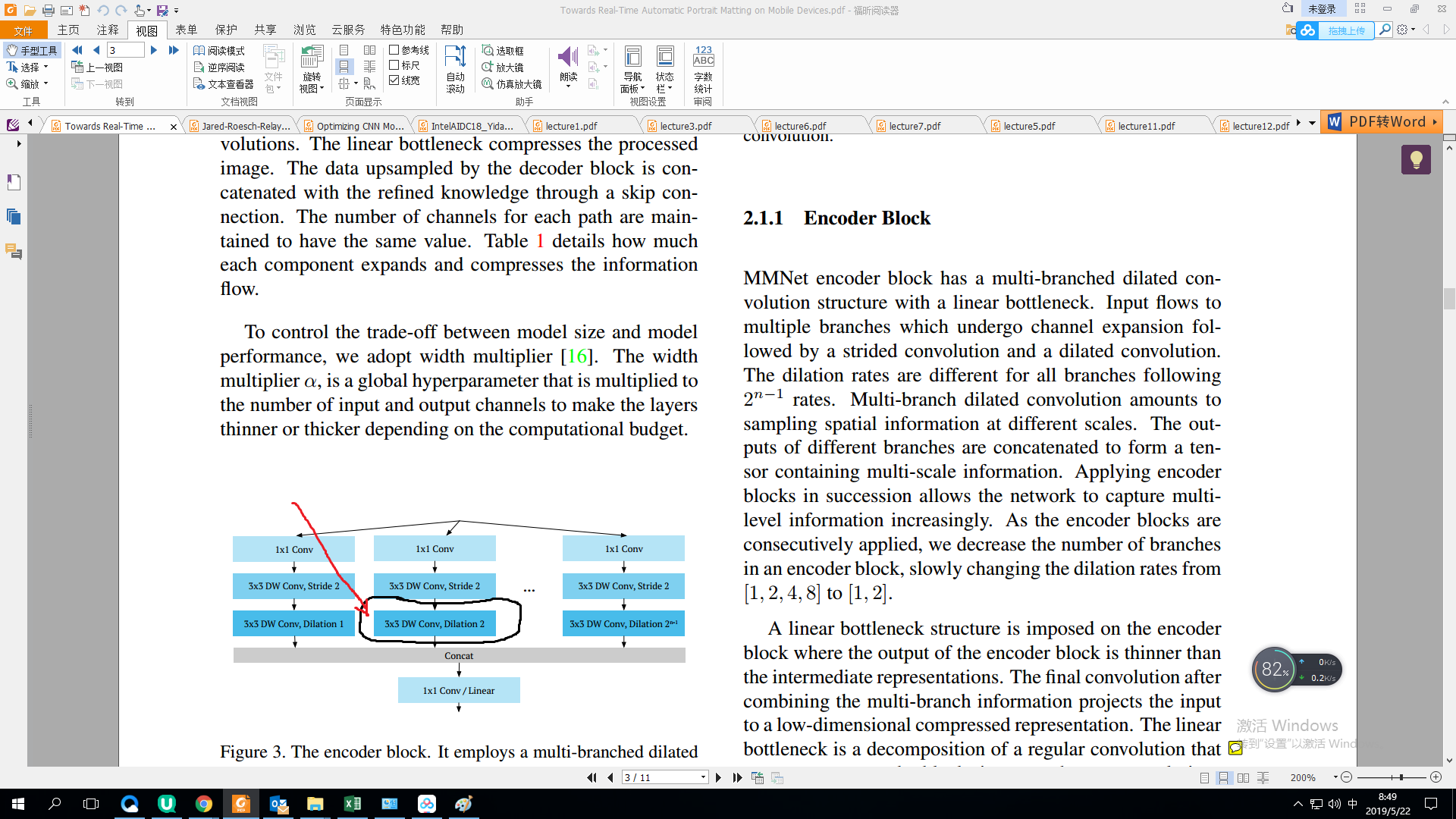

thank you very much! depth-wise convolution with different dilation rates(which can also be called atrous depthwise convolution ) can compose a structure called atrous spatial pyramid pooling(ASPP), (google’s well-known model deeplabv3 uses depth-wise conv2ds with different dilation rates), which is widely used for Semantic Segmentation tasks. could tvm handle atrous depthwise convolution? who is doing the tensorflow frontend? thanks again!

dolphintear · May 24, 2019, 2:41pm

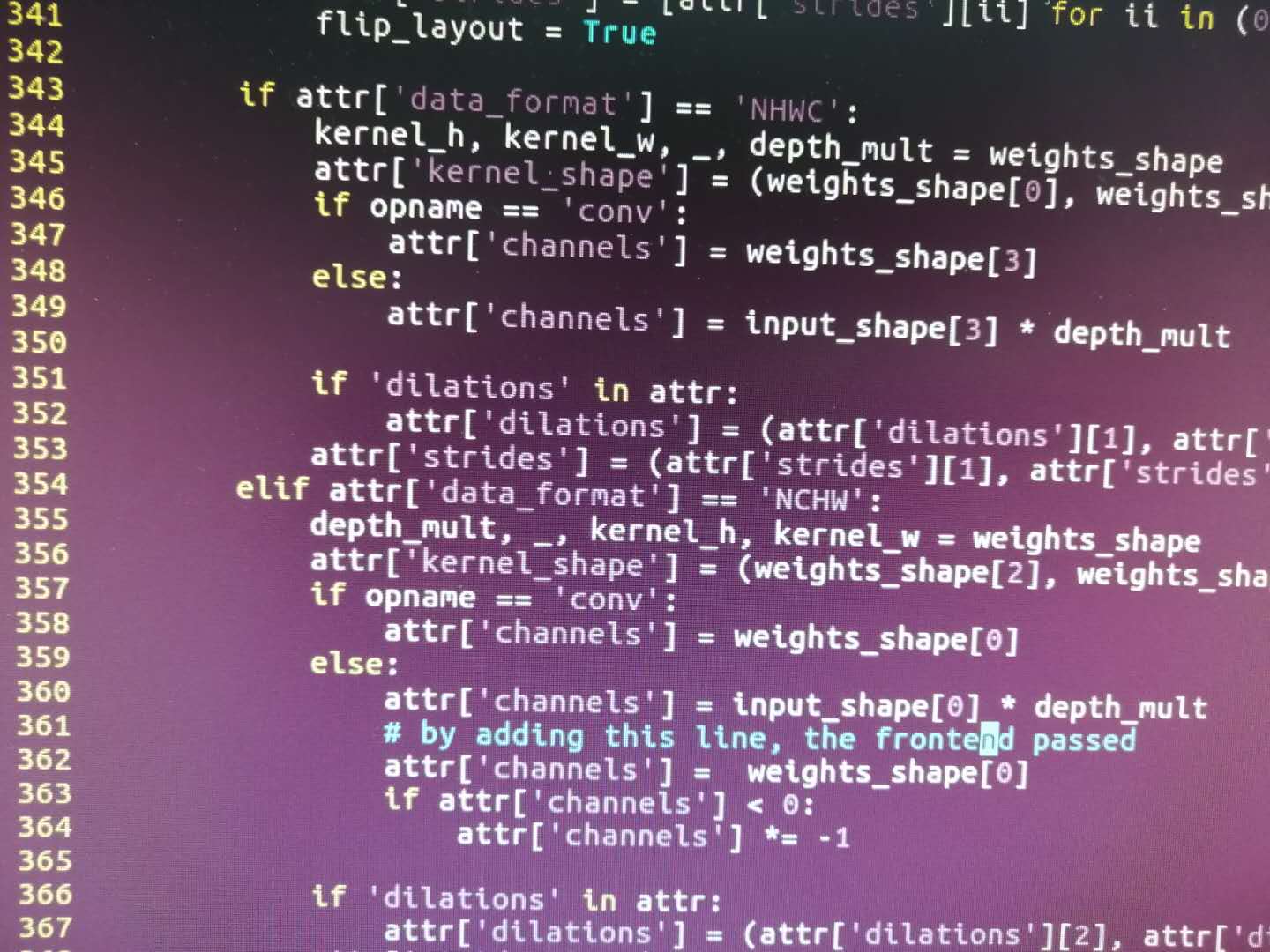

when I looked into the tensorflow frontend a the tvm/python/tvm/relay/frontend/tensorflow.py, did a little change to the code at the line 361, by adding : attr[‘channels’] = weights_shape[0] showed as the picture below , it’s just a workaround for my case and the tensorflow frontend passed and auto-tunning works too.

the tensorflow decompose the depthwise dilated conv2d into three steps: 1. SpaceToBatchND 2.DepthWiseConv2d 3. BatchToSpaceND:
input_converted = array_ops.space_to_batch_nd(
input=inp, block_shape=dilation_rate, paddings=paddings)
result = self.op(input_converted, filter)
result_converted = array_ops.batch_to_space_nd(
input=result, block_shape=dilation_rate, crops=crops)
after space_to_batch_nd, there is no channel increased but adds a batch dim, so does in the tensorflow frontend. In my opinion, it’s most probably this frontend bug caused the error.

dolphintear · May 24, 2019, 9:34am

during the auto-tuning, an error occurred: [Task 2/48] Current/Best: 11.99/ 18.48 GFLOPS | Progress: (224/560) | 557.88 s Done.
[Task 3/48] Current/Best: 2.84/ 18.95 GFLOPS | Progress: (352/1792) | 874.00 s Done.
Traceback (most recent call last):
File “autotune_tensorflow_x86_mmnet.py”, line 236, in
tune_kernels(tasks, **tuning_option)
File “autotune_tensorflow_x86_mmnet.py”, line 198, in tune_kernels
target=target, template_key=‘direct’)
File “/home/dolphin/tvm/python/tvm/autotvm/task/task.py”, line 191, in create
sch, _ = func(*args)
File “/home/dolphin/tvm/topi/python/topi/x86/depthwise_conv2d.py”, line 217, in _topi_nn_depthwise_conv2d_NCHWc
data_layout, out_layout, dtype)
File “/home/dolphin/tvm/topi/python/topi/x86/depthwise_conv2d.py”, line 78, in _depthwise_conv2d_NCHWc_cpu
= get_const_tuple(kernel.shape)
ValueError: not enough values to unpack (expected 6, got 4)
Does it related to the frontend?
Thanks in advance!

eqy · May 24, 2019, 9:27pm

This looks like the data layout of the kernel is not what is expected (e.g., NCHW instead of NCHWc). Can you check what the 4th task is?

dolphintear · May 28, 2019, 8:38am

thank you very much @eqy ! in the file of tvm/topi/python/topi/x86/depthwise_conv2d.py
line 209: new_kernel_shape = (out_channel // oc_bn, kh, kw, oc_bn) should have 6 values, but it has 4 values which causes this error.
because the function of the line 217: C = _depthwise_conv2d_NCHWc_cpu(cfg, new_data, new_kernel, strides, padding, dilation, data_layout, out_layout, dtype) where the new_kernel should have 6 values. so mismatch happened.
could you help looked into the issue? than you very much!

after I changed this line into new_kernel_shape = (out_channel // oc_bn,0, kh, kw,0, oc_bn) the autotunning passed, just for my case.
but there is another error occurred :
Traceback (most recent call last):
File “autotune_tensorflow_x86_mmnet_input.py”, line 252, in
net, target=target, params=params)
File “/home/dolphin/tvm/python/tvm/relay/build_module.py”, line 305, in build
graph_json, lowered_funcs, params = graph_gen.codegen(func)
File “/home/dolphin/tvm/python/tvm/relay/backend/graph_runtime_codegen.py”, line 90, in codegen
self._codegen(func)
File “/home/dolphin/tvm/python/tvm/_ffi/_ctypes/function.py”, line 209, in call
raise get_last_ffi_error()
tvm._ffi.base.TVMError: Traceback (most recent call last):
[bt] (8) /home/dolphin/tvm/build/libtvm.so(+0xcf12c8) [0x7f3621bdf2c8]
[bt] (7) /home/dolphin/tvm/build/libtvm.so(+0xcebca6) [0x7f3621bd9ca6]
[bt] (6) /home/dolphin/tvm/build/libtvm.so(+0xcf12c8) [0x7f3621bdf2c8]
[bt] (5) /home/dolphin/tvm/build/libtvm.so(+0xcebca6) [0x7f3621bd9ca6]
[bt] (4) /home/dolphin/tvm/build/libtvm.so(+0xcf0e7a) [0x7f3621bdee7a]
[bt] (3) /home/dolphin/tvm/build/libtvm.so(+0xca6e7f) [0x7f3621b94e7f]
[bt] (2) /home/dolphin/tvm/build/libtvm.so(+0xcadf4c) [0x7f3621b9bf4c]
[bt] (1) /home/dolphin/tvm/build/libtvm.so(+0xcad424) [0x7f3621b9b424]
[bt] (0) /home/dolphin/tvm/build/libtvm.so(+0xf4db0b) [0x7f3621e3bb0b]
File “/home/dolphin/tvm/python/tvm/_ffi/_ctypes/function.py”, line 71, in cfun
rv = local_pyfunc(*pyargs)
File “/home/dolphin/tvm/python/tvm/relay/op/nn/_nn.py”, line 165, in schedule_conv2d
return topi.generic.schedule_depthwise_conv2d_nchw(outs)
File “</home/dolphin/.local/lib/python3.5/site-packages/decorator.py:decorator-gen-57>”, line 2, in schedule_depthwise_conv2d_nchw
File “/home/dolphin/tvm/python/tvm/target.py”, line 372, in dispatch_func
return dispatch_dict[k](*args, **kwargs)
File “</home/dolphin/.local/lib/python3.5/site-packages/decorator.py:decorator-gen-151>”, line 2, in config_dispatcher
File “/home/dolphin/tvm/python/tvm/autotvm/task/dispatcher.py”, line 220, in dispatch_func
return dispatch_dict[cfg.template_key](cfg, *args, **kwargs)
File “/home/dolphin/tvm/python/tvm/autotvm/task/topi_integration.py”, line 437, in template_call
return f(cfg, outs, *args, **kwargs)
File “/home/dolphin/tvm/topi/python/topi/arm_cpu/depthwise_conv2d.py”, line 151, in schedule_depthwise_conv2d_nchw_arm
traverse_inline(s, outs[0].op, _callback)
File “/home/dolphin/tvm/topi/python/topi/util.py”, line 51, in traverse_inline
_traverse(final_op)
File “/home/dolphin/tvm/topi/python/topi/util.py”, line 49, in _traverse
callback(op)
File “/home/dolphin/tvm/topi/python/topi/arm_cpu/depthwise_conv2d.py”, line 135, in _callback
_schedule(cfg, s, data, data_pad, kernel, output)
File “/home/dolphin/tvm/topi/python/topi/arm_cpu/depthwise_conv2d.py”, line 75, in _schedule
c, vc = cfg[‘tile_c’].apply(s, A0, c)
File “/home/dolphin/tvm/python/tvm/autotvm/task/space.py”, line 773, in getitem
return self._entity_map[name]
KeyError: ‘tile_c’

dolphintear · May 28, 2019, 7:49am

File “/home/dolphin/tvm/topi/python/topi/arm_cpu/depthwise_conv2d.py”, line 151, in schedule_depthwise_conv2d_nchw_arm

why does it turn to arm_cpu? I did the auto-tunning on x86 cpu.

tianxingyzxq · May 28, 2019, 8:35am

I have the same problem！ can someone help？？ @kevinthesun @tqchen

dolphintear · May 29, 2019, 3:58pm

hi，eqy could you give me some advise on this issue? thank you very much!

eqy · May 29, 2019, 6:34pm

Can you share your script for this issue? What is your target set to?

dolphintear · May 30, 2019, 11:10am

thank you! @eqy
target is set to target = ‘llvm’, ctx = tvm.cpu()
the script is at https://github.com/dolphintear/tvm_x86_autotune: autotune_tensorflow_x86_mmnet_input.py and the pb is also at this address.
I made two changes to two tvm files as discussed above:
tvm/python/tvm/relay/frontend/tensorflow.py, did a little change to the code at the line 361, by adding : attr[‘channels’] = weights_shape[0]
in the file of tvm/topi/python/topi/x86/depthwise_conv2d.py:
ine 209: new_kernel_shape = (out_channel // oc_bn, kh, kw, oc_bn) , I changed this line into new_kernel_shape = (out_channel // oc_bn,0, kh, kw,0, oc_bn)

dolphintear · June 3, 2019, 7:03am

hi, @eqy

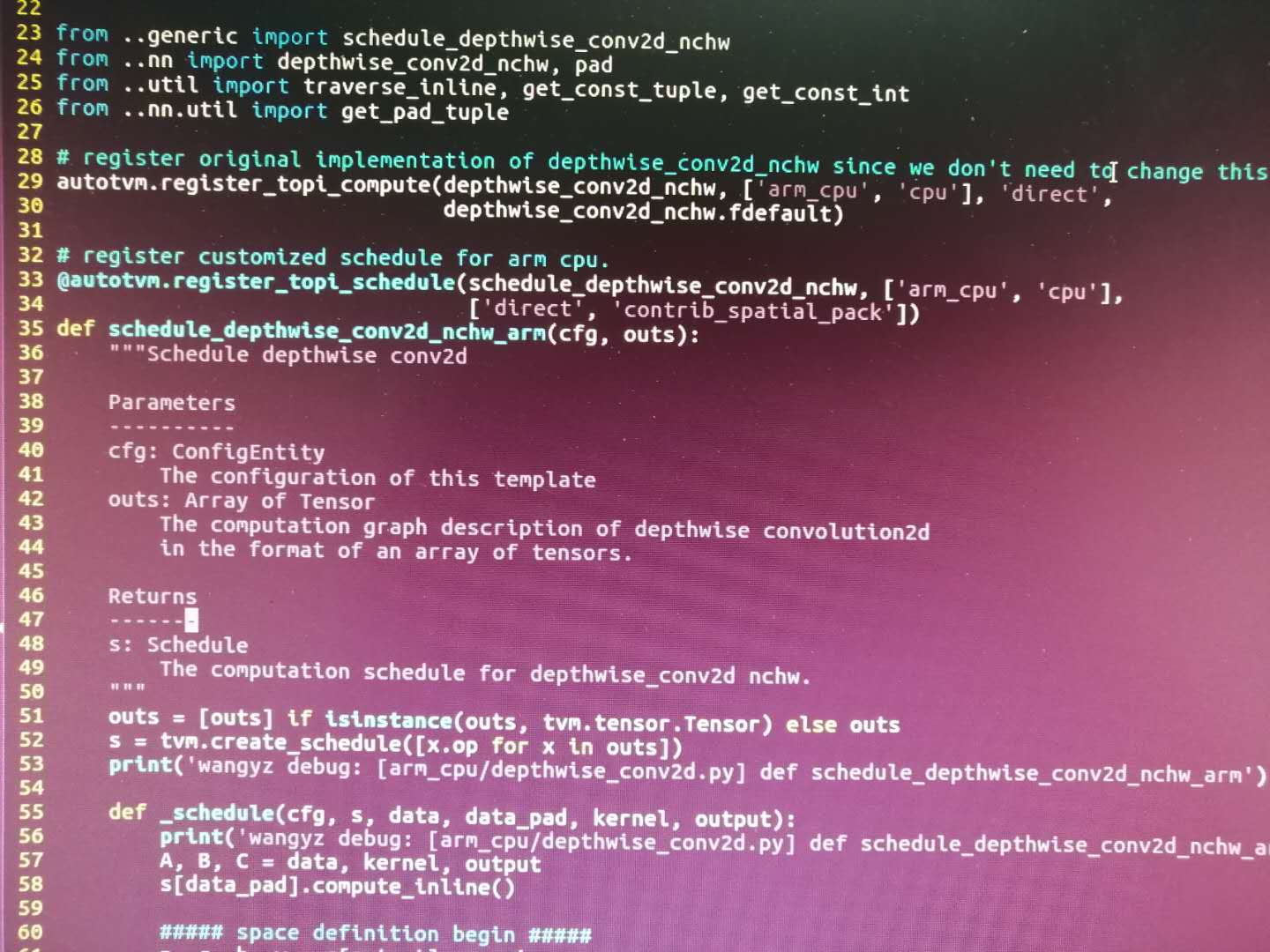

This issue has been really bothering and confusing me for a couple of days. today I looked into the file of topi/python/topi/arm_cpu/depthwise_conv2d.py and it’s odd. I found there are not only arm_cpu but also cpu as its ctx show as below:
autotvm.register_topi_compute(depthwise_conv2d_nchw, [‘arm_cpu’, ‘cpu’], ‘direct’,…
@autotvm.register_topi_schedule(schedule_depthwise_conv2d_nchw, [‘arm_cpu’, ‘cpu’],…
@autotvm.register_topi_schedule(schedule_depthwise_conv2d_nchw, [‘arm_cpu’, ‘cpu’],…
why does it has ‘cpu’ in the list of [‘arm_cpu’, ‘cpu’]?
I added two prints at the line of 53 and 56 in the file of topi/python/topi/arm_cpu/depthwise_conv2d.py and ran the autuning again, found that during tasks = autotvm.task.extract_from_program(…), the tvm extracted arm_cpu depthwise conv2d tasks but not the x86 depthwise conv2d
logs has these messages:
wangyz debug: [task.py] <function TaskExtractEnv._register_topi_task.._topi_nn_depthwise_conv2d_nchw at 0x7fa27cf7c268>, func_name topi_nn_depthwise_conv2d_nchw
wangyz debug: [topi_integration.py] outs=[Tensor(shape=[16, 40, 16, 16], op.name=DepthwiseConv2d)], args=(), kwargs={}
wangyz debug: [arm_cpu/depthwise_conv2d.py] def schedule_depthwise_conv2d_nchw_arm
wangyz debug: [arm_cpu/depthwise_conv2d.py] def schedule_depthwise_conv2d_nchw_arm/def _schedule

thank you !

Equay · June 4, 2019, 3:21pm

Hello,

This PR fixed the ARM error for me: https://github.com/dmlc/tvm/pull/3264

Good luck!

dolphintear · June 5, 2019, 8:44am

thank you very my much! @kevinthesun This PR did fix the second error and the third one for my tensorflow model. When will you merge the PR? Could I know who is the contributor for the relay/frontend/tensorflow.py, for my first issue, it’s related to tensorflow frontend problem and I just did the workaround for my tensorflow model, after that tvm can pass the frontend. thank you @Equay and @kevinthesun

kevinthesun · June 7, 2019, 1:32am

This PR is merged. For tf converter I think @srkreddy1238 and @yongwww contribute a lot.
