[RFC][BYOC] Runtime module to offload subgraph to edge server

The goal of this RFC is to offload subgraph inference from user devices to high performance edge servers. The initial code is available here, which implements inference offloading based on BYOC.


The benefit of offloading inference is like as follows:

  • In the 5G era, the network latency is very low. We can make use of high-spec hardware in the cloud for better performance.
  • In some cases, we don’t want to expose the whole network structure or weight data to users to protect intellectual property.

It is hard work to implement efficient inference offloading for each neural network by hand. We can do it automatically if TVM has a runtime support for offloading.

Use case

The figure illustrates Mask R-CNN inference on an iPhone device.

With the subgraph offloading feature, we can run the R-CNN backbone on the iPhone, send an encoded feature map to the MEC server, and run the head parts on the MEC server. Each stage can be parallelized in a pipeline fashion.

We shouldn’t send a raw input image to the server because the original picture is a privacy sensitive data and, in addition, its size is too big to be sent over the network. Instead, the encoded feature map can be smaller and less sensitive than the original input.

I’ve implemented a PoC application for this and confirmed that we can show more than 70 FPS. Such performance is unlikely to be achieved only on the iPhone device.

Here is a demo video: https://youtu.be/7MHIfdq2SKU



  1. Build

    • Add annotation to specify which part of the graph should be offloaded to the remote edge server. [PoC code]

    • Unlike the other BYOC examples, we do nothing in relay.ext.remote. It is because,

      • TVM doesn’t allow calling another relay.build inside relay.build.
      • The content of subgraph should be updatable separately.

      Instead, we build the subgraph part separately. [PoC code]

  2. Deploy

    • Place the separately built library on the remote server. [PoC code]
    • Run inference server to process inference requests from edge devices.

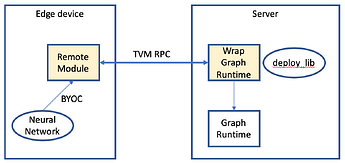

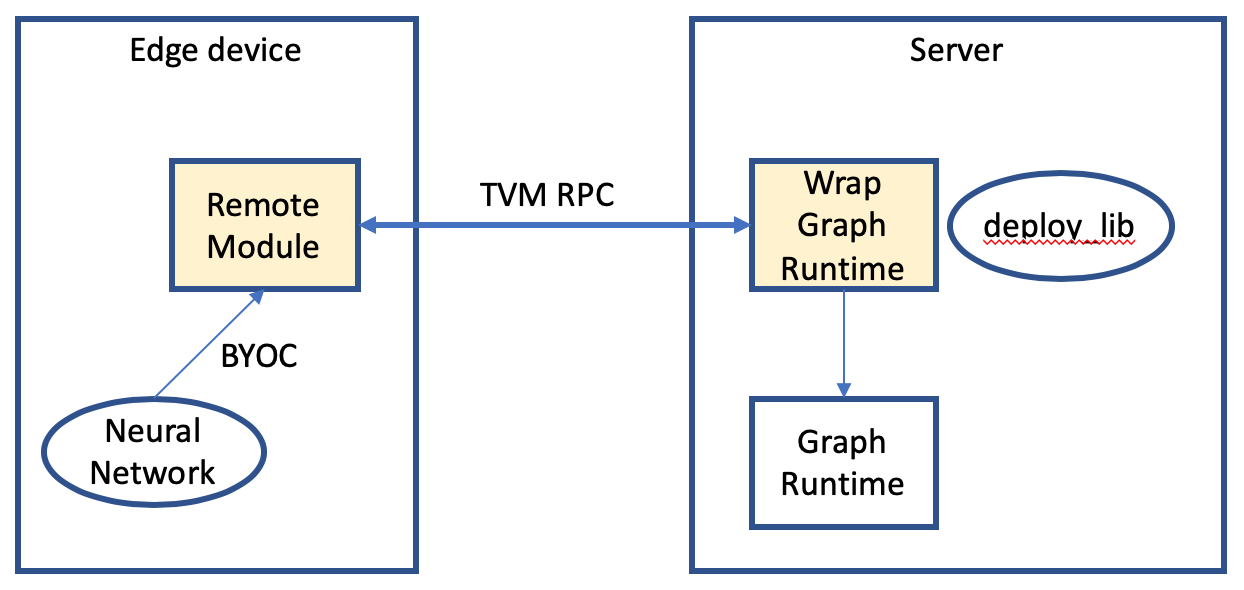

Two modules are introduced.

  • RemoteModule

    This module is implemented based on BYOC. It calls the WrapGraphRuntime module via RPC. We cannot call the remote GrapRuntime directly because the subgraph structure and weight data are located on the remote server.

  • WrapGraphRuntime

    This module calls the local GraphRuntime using the deployed library.

RPC protocol

Since we don’t have an official inference server for TVM, I think of starting from using the TVM RPC server to serve inference requests. There are some points which should be improved.

  • Bulk read/write

    dmlc::Stream::{ReadArray,WriteArray} repeat read and write for the number of elements, which is not efficient.

  • Handle requests from multiple clients at the same time.

    Not sure why we don’t allow concurrent RPC requests now. I support it on my PoC implementation with a quick patch temporarily.

  • Reduce the number of round-trips

    This is probably beyond the scope of the TVM RPC, but it’d be more efficient if we can do the below with a single RPC.

    • Send input tensors from local to remote
    • Run the remote function
    • Receive output tensors from remote to local

Supporting more standard protocols like GRPC, HTTP is future work. I think it’s also possible to cooperate with other inference servers like Tensorflow serving, TensroRT inference server, and so on.

Any comments would be appreciated.

@tqchen @zhiics @haichen @masahi


@kazum Thanks for the effort. It is very interesting. It sounds that you only need BYOC to do annotation and partitioning as you don’t really have a backend/library for it, right? I am wondering how you package the subgraphs, do you manually prepare them? Thanks.

@zhiics Thanks for your comment. Yes, I just use BYOC to specify which part should be offloaded. The subgraph can be a blackbox for users.

There are two ways I tried to prepare the package.

  1. Cross-compile locally and upload the built lib to the remote server. [code]

    This works if we know the content of the subgraph and we have a toolchain to cross-compile it.

  2. Build the subgraph manually on the remote server.

    Here is a script I used to build the remote package with CUDA. Currently, the file name of the deployed package depends on the symbol name produced by BYOC, so I have to manually specify it in the script for now.

Hi @kazum ,

I thought about a similar approach to distribute the inference of neural networks across multiple devices, but never really implemented anything.

However, you might want to check the RPC infrastructure of TVM, as it allows you to upload and execute IRModules on other devices via the TVM runtime. I would suggest an approach, where you store the IRModule of your partitioned subgraph and send it to the edge server for compilation. You could build some kind of hashing system into the runtime on the server to avoid recompiling already compiled subgraphs.
