Python-C++ Mixed Debugging Configuration in VSCode​

The following .vscode/launch.json configuration enables mixed debugging of TVM’s Python frontend (Python debugger) and C++ backend (GDB) in VSCode.

// .vscode/launch.json
{
    "version": "0.2.0",
    "configurations": [
        /*
         * Configuration 1: Hybrid Python + C++ Debugging for TVM.
         * Purpose: Debug both Python frontend and C++ backend simultaneously.
         * Mechanism: Launches Python script while attaching to C++ process.
         * Use: This is a hybrid debugging approach, where users should launch
         *      the Python script first, and then the C++ process is automatically
         *      attached to.
         * Note:
         *   - Requires `benjamin-simmonds.pythoncpp-debug` (Python C++ Debugger)
         *     extension for C++ debugging.
         *   - The following 1.1 and 1.2 configurations are subordinate to this configuration.
         */
        {
            "name": "Full Auto Debug (Python+C++)",
            "type": "pythoncpp",
            "request": "launch",
            "pythonLaunchName": "Python: TVM Frontend",
            "cppAttachName": "C++: TVM Backend",
        },
        /*
         * Configuration 1.1: Python Frontend Debugger.
         * Purpose: Debug Python components of TVM.
         */
        {
            "name": "Python: TVM Frontend",
            "type": "debugpy",
            "request": "launch",
            "program": "${file}",
            "console": "integratedTerminal",
            "justMyCode": false,
            "purpose": [
                "debug-in-terminal"
            ],
            "args": [],
            "env": {},
            "gevent": false
        },
        /*
         * Configuration 1.2: C++ Backend Attach Debugger.
         * Purpose: Debug TVM's C++ runtime.
         * Note:
         *   - Customize `"program"` entry to your venv python executable path.
         */
        {
            "name": "C++: TVM Backend",
            "type": "cppdbg",
            "request": "attach",
            // Customize this to your venv python executable path
            "program": "/home/user/miniconda3/envs/tvm-build-venv/bin/python3",
            "processId": "${command:pickProcess}",
            "MIMode": "gdb",
            "setupCommands": [
                {
                    "description": "Enable pretty-printing for gdb",
                    "text": "-enable-pretty-printing",
                    "ignoreFailures": true
                }
            ]
        },
        /*
         * Configuration 2: Pure C++ Debugging.
         * Purpose: Debug standalone C++ executables.
         * Use: When testing C++ components without Python
         * Note:
         *   - Customize `"program"` entry to your C++ executable path.
         */
        {
            "name": "Pure C++ Debug",
            "type": "cppdbg",
            "request": "launch",
            // Customize `"program"` entry to your C++ executable path.
            "program": "${workspaceFolder}/oot-tvm-example-project/build/oottvm_test",
            "args": [],
            "cwd": "${workspaceFolder}",
            "MIMode": "gdb",
            "setupCommands": [
                {
                    "description": "Enable pretty-printing for gdb",
                    "text": "-enable-pretty-printing",
                    "ignoreFailures": true
                },
            ],
            "environment": [
                {
                    "name": "EXAMPLEKEY",
                    "value": "EXAMPLEVALUE"
                }
            ]
        },
    ],
}

1. Required VSCode Extensions

Before using this configuration to debug TVM, we should install the following extensions for VSCode:

  • Python Debugger: Search ms-python.debugpy in VSCode extension marketplace.
  • C/C++: Search ms-vscode.cpptools in VSCode extension marketplace.
  • ​Python C++ Debugger​​: Search benjamin-simmonds.pythoncpp-debug in VSCode extension marketplace.

After installing the extensions, we should copy the .vscode/launch.json file to the root directory of your own TVM project. And the next steps will explain some details that you should modify in the launch.json file.

2. Debugging Modes​ and Usage

The current configuration supports two debugging modes:

  • Hybrid Python Frontend + C++ Backend Debugging for TVM
  • Pure C++ Backend Debugging for TVM

As the fowllowing image shows, we can choose the debugging mode in graphical interface. Ther are four choices:

  • Full Auto Debug (Python+C++) is the entry for Hybrid Python Frontend + C++ Backend Debugging.
    • Python: TVM Frontend is responsible for the debugging of the Python Frontend.
    • C++: TVM Backend is responsible for the debugging of the C++ Backend.
  • Pure C++ Debug (C++) is the entry for Pure C++ Backend Debugging.


2.1 Hybrid Python + C++ Debugging for TVM

This is a hybrid debugging approach, and requires users to first launch the Python script, after which the C++ process will be automatically attached.

IMPORTANT

Customize the "program" entry in .vscode/launch.json to point to your Python virtual environment executable. Example path:

"program": "/home/user/miniconda3/envs/tvm-build-venv/bin/python3"

Commands that interact with the Debug Console should be preceded by -exec, example:

-exec p pc or -exec call tvm::Dump(mod)

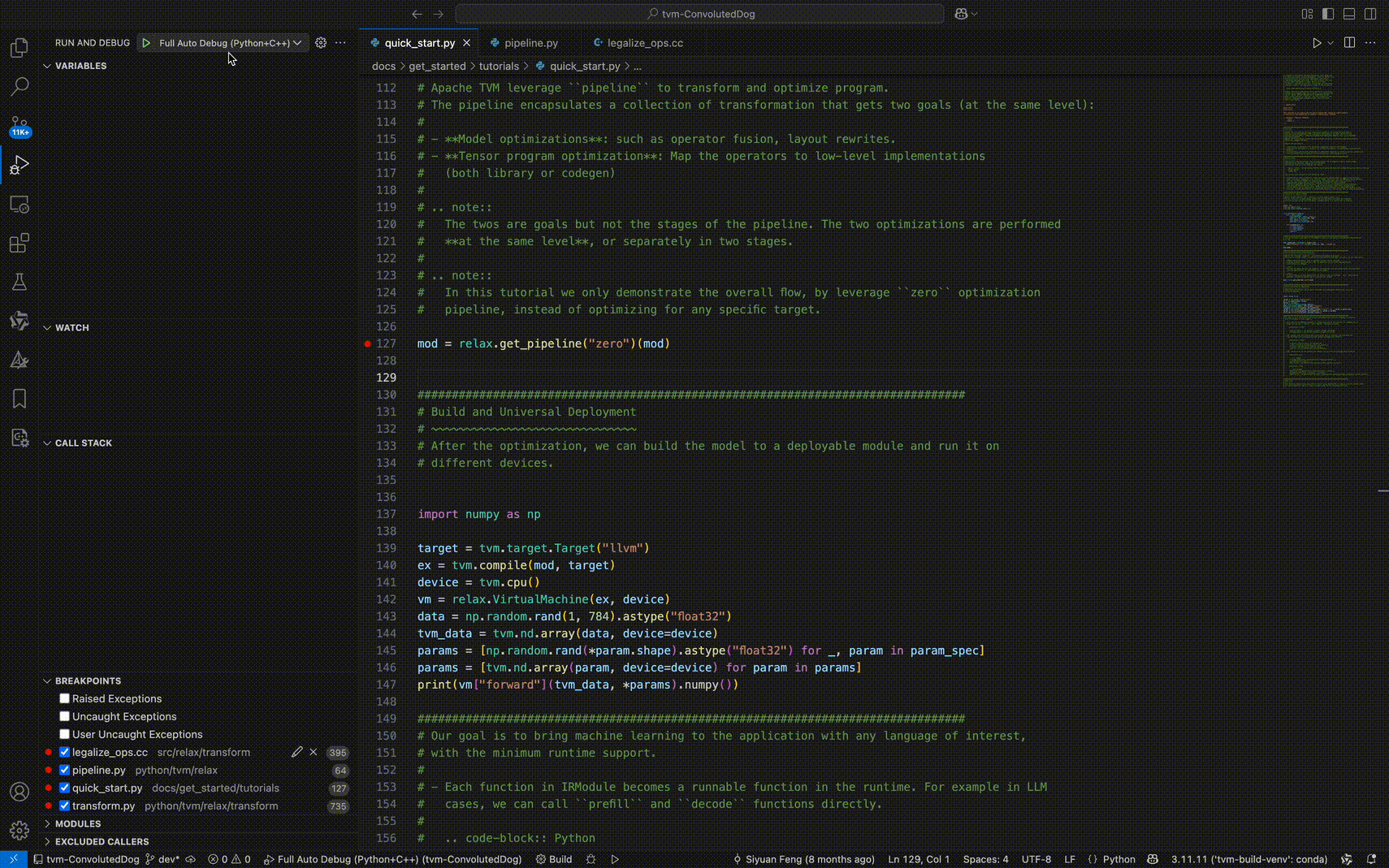

Example:

Hybrid Debugging Example

2.2 Pure C++ Debugging

This is a pure C++ debugging approach, where users can debug C++ components without Python scripts.

IMPORTANT

Customize the "program" entry in .vscode/launch.json to your C++ executable path. Example path:

"program": "${workspaceFolder}/oot-tvm-example-project/build/oottvm_test"

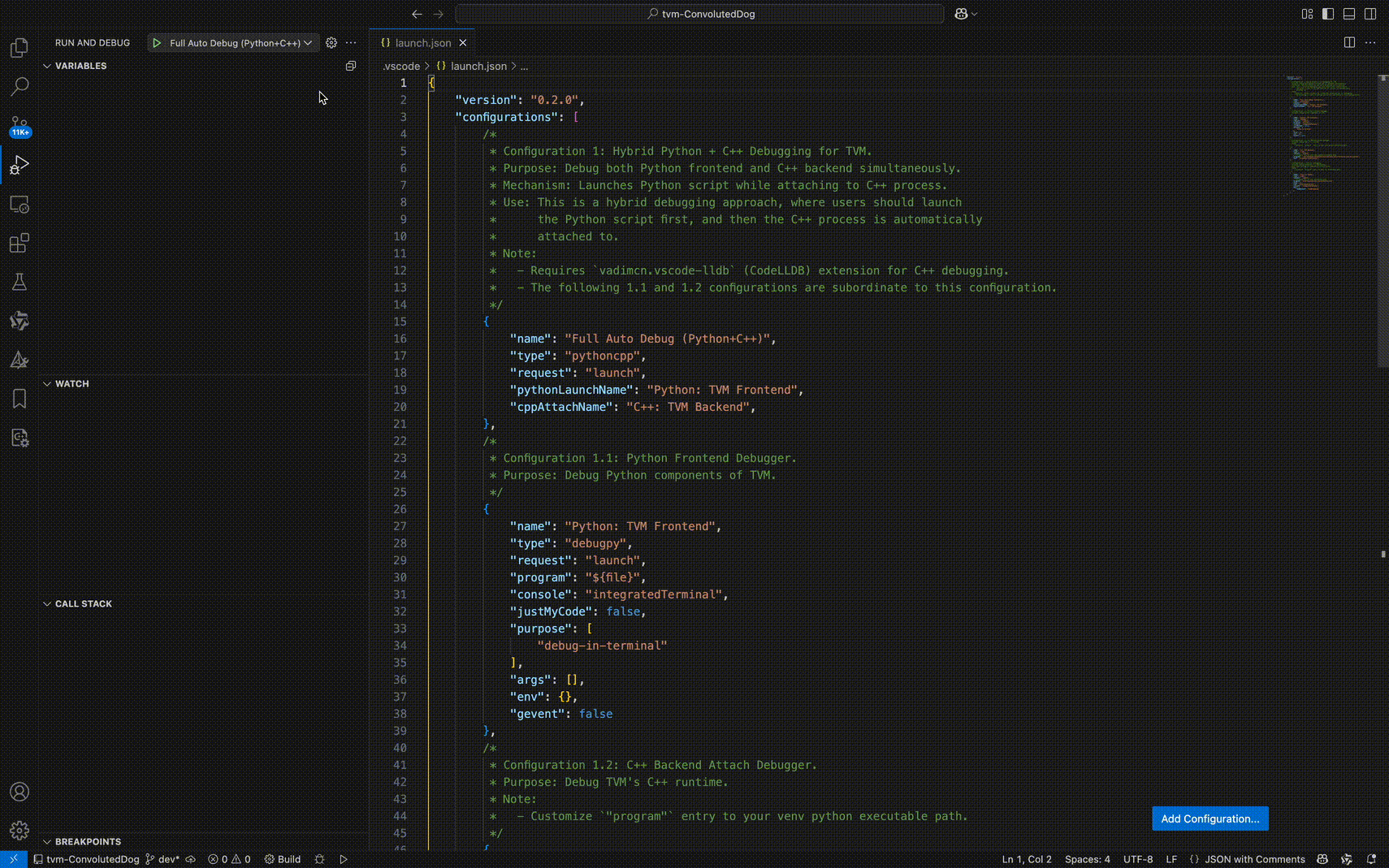

Example:


You can also check .vscode/launch.json for debugging mode details - we’ve added extensive comments there.

3. Maintenance

This configuration is maintained at:
