Output temporary data to global and also save it in local

Questions
1

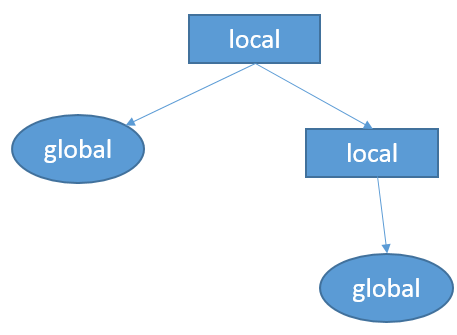

How can I output a intermediate result to global buffer and also keep the intermediate result in local buffer to be calculated next. the calculating graph is as below

image457×335 6.08 KB

I tried code like this:

import tvm

shape = (255,255, 255)
data = tvm.placeholder(shape, "float16", "data")

a = tvm.compute(shape, lambda i,j,k:data[i,j,k] + 1, name = "a")
tmp = tvm.compute((255, 255), lambda i,j:a[i,j,0], name = "tmp")
b = tvm.compute(shape, lambda i,j,k:a[i,j,k] + 1, name = "b")
c = tvm.compute(shape, lambda i,j,k:b[i,j,k] + 1, name = "b")

s = tvm.create_schedule([c.op, tmp.op])
print tvm.lower(s, [c, data, tmp], simple_mode = True)

it gets right code, but if I try to schedule this by compute_at, an error occurs

Traceback (most recent call last):
  File "./tmp_ddr.py", line 22, in <module>
    print tvm.lower(s, [c, data, tmp], simple_mode = True)
  File "/nnvm/tvm/python/tvm/build_module.py", line 330, in lower
    bounds = schedule.InferBound(sch)
  File "/nnvm/tvm/python/tvm/_ffi/function.py", line 280, in my_api_func
    return flocal(*args)
  File "/nnvm/tvm/python/tvm/_ffi/_ctypes/function.py", line 183, in __call__
    ctypes.byref(ret_val), ctypes.byref(ret_tcode)))
  File "/nnvm/tvm/python/tvm/_ffi/base.py", line 66, in check_call
    raise TVMError(py_str(_LIB.TVMGetLastError()))
tvm._ffi.base.TVMError: [10:48:14]
/nnvm/tvm/src/schedule/bound.cc:168: Check failed: found_attach || stage_attach.size() == 0 Invalid Schedule, cannot find the producer compute(a, 0x2dc9ab0) along the loop nest specified by compute_at of consumer compute(b, 0x2dcb090)
2

I find in tvm.schedule.InferBound part, when a data is output, the type must be Root, so we cannot compute_at data to any tensors.
so should we add a new type of like “tmp_output”?

3

One possible way to do so, is to create a joint output (multiple output) in the end that stores to two globals. This however, requires the shape of output to be the same.
