Operator fusion for RNN

Hi,

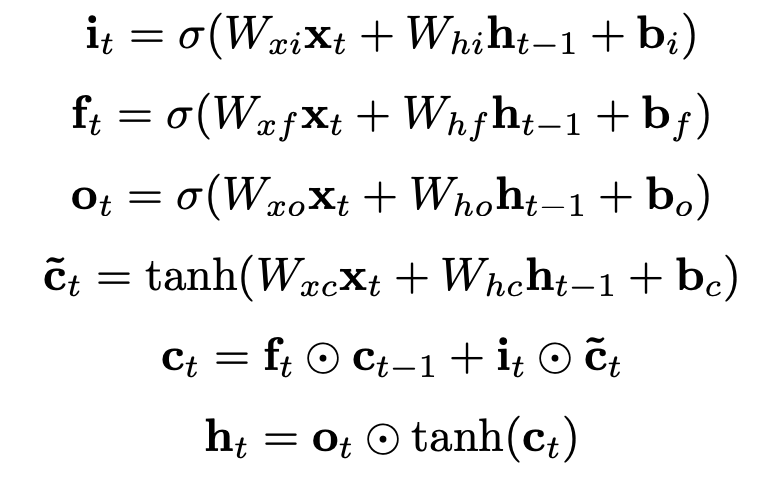

I am learning about TVM’s optimizations lately, and was wondering how TVM does fusion for RNNs? I understand how fusion can be done for operators like matrix multiplication and ReLU, but the computation in RNNs seems more complicated and has more dependences. For example, this is a summary of the computation of LSTM.

Will TVM try to fuse these 6 expressions together? If so how would that work? Thanks!

No, we only fuse only each line above into one kernel, not across different lines (matmuls).

Hi, masahi, thank you for the reply! Could you elaborate more? I don’t totally understand, do you mean fusion is done per expression? not across expressions? Also I thought fusion is performed on the IR and between operators. Why would different lines matter though, they would be converted to the IR anyway right?

sorry what I said above didn’t make any sense… We automatically fuse matmul and following bias_add, elemwise ops like activation. But we never fuse two matmul (like W_{xi} * x_t + W_{hi} * h_{t-1} above)

I see, thanks for the clarification!
